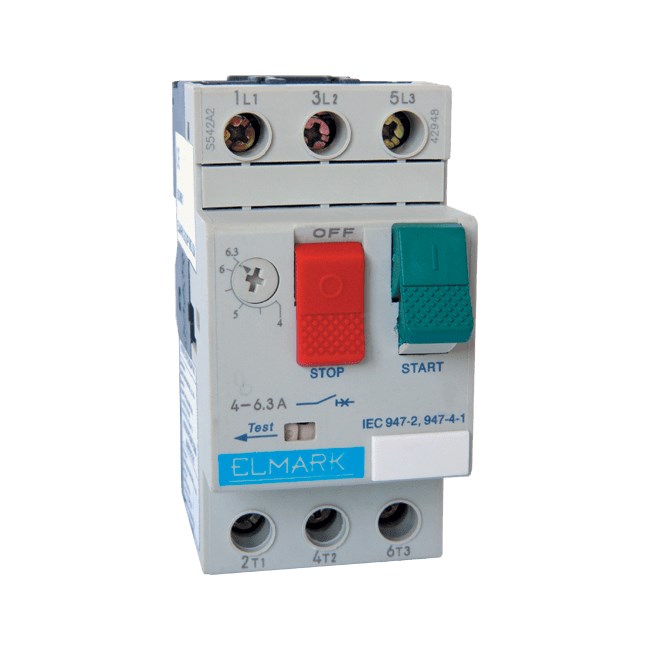

Technical characteristics of TM2/TM3:
- Rated operating current range: from 0.1 up to 80?
- Rated operating voltage: up to 690V ??,50/60Hz
- Insulating voltage: 690V
- Surge voltage wear resistance: ≥6000V
- Electrical wear resistance (number of cycles): ≥1000000
- Mechanical wear resistance (number of cycles): ≥10000000
- Ambient temperature: -10° to 65º?
- Maximum altitude: 2000m
Advantages:
- Option for independent operation or as an element of an automation system
- Option for operation at higher frequency
- Option for adjustment of protection activating range
- High reliability of the current characteristics
- Option for change/choice of the protection current (according to the rated operating current)
- Automatic compensation of the ambinet temperature
- Easy mounting and long life
Functions:
- For switching off alternating current consumers at current overload
- For switching off the electrical circuit to the consumer at input short circuit
- For protection of the motor at lack/lowering of the phase voltage (if there is under voltage release)
- Used as a protective operating element against overload, overheat or short circuit in control panels of induction motors
Applications:
- Industry
- Building construction
Mounting: On a DIN rail or in watertight box for ??2
Standards: EN60947-1; EN60947-4-1; LVD; EMC
