TECHNICAL DATA
- Rated current: 18A
- Coil voltage: 24V
- Type of the contacts: 1NO
- Coil type: Alternating current
- Contactor type: D

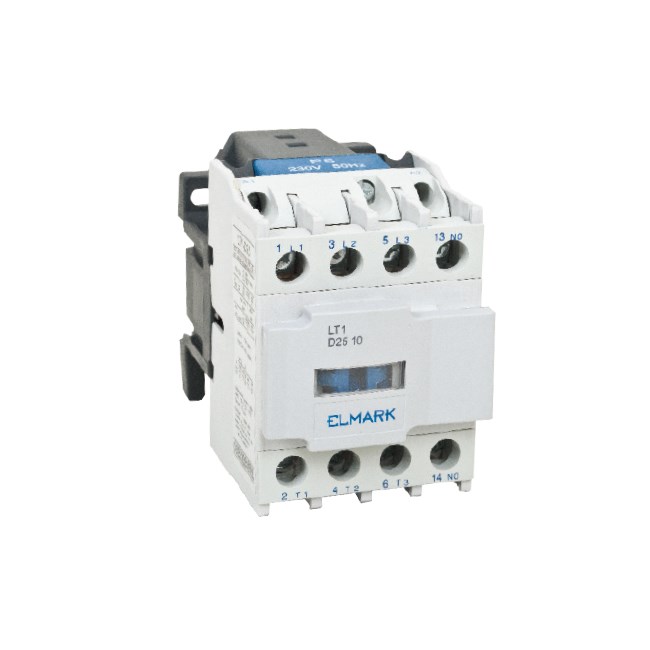

Technical characteristics LT1-D-serien
Operation class: AC-3
Rated current: 6-95A
Rated operating voltage of power contactors: up to 690V; 50/60Hz
Surge voltage wear resistance: >8000V
Rated operating voltage of the coil: 12/24/36/48/110/230/400
Electrical wear resistance (number of cycles): ≥1000000
Mechanical wear resistance (number of cycles):≥10000000
Number of cycles (switchings ON) per hour:
6-32A - 1200cycles
40-95A - 600cycles
Pole leaking power: up to 13W
Ambient temperature: -10°÷60ºC
Maximum altitude: up to 2000m
Mounting: on a DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°
Standards: EN60947-1; EN60947-4-1
